Graphic Series

Display Format
L x W (dots)		 Viewing area
L x W (mm)		 Dot Pitch
L x W (mm)		 Module Size
L x W (mm)		 Model
No.		 Assembly
Type		 Backlight Type
L / M / E / C		 Duty Interface Connector Controller Remark
12 x 12 52.0 x 52.0 3.96 x 3.96 56.0 x 65.2 CG1212A COG L / - / - / - Static 8-bit PIN - -
84 x 24 47.70 x 16.70 0.54 x 0.54 55.00 x 30.00 CV8424A COB - / - / - / - 1/25 4-bit ^5 RW1068 ^4
96 x 16 19.26 x 5.18 0.18 x 0.20 26.30 x 9.80 CG9616A COG L / - / - / - 1/16 I2C FPC ST7539I-G4 -
98 x 64 34.00 x 22.00 0.30 x 0.30 37.00 x 33.00 CG9864A COG L / - / - / - 1/64 Serial FPC ST7567 ^1
100 x 65 28.00 x 26.70 0.26 x 0.38 32.50 x 37.00 CV9021A COG L / - / - / - 1/65 Serial FPC ST7565P ^1
120 x 24 60.50 x 17.70 0.47 x 0.58 84.00 x 44.00 CV12024A COB L / - / - / - 1/24 4-bit - ET7010 ^4
120 x 32 62.50 x 23.50 0.47 x 0.58 84.00 x 44.00 CV12032A COB L / M / E / - 1/32 8-bit - BS1520 -
120 x 32 62.50 x 23.50 0.47 x 0.58 84.00 x 44.00 CV12032C COB L / M / E / - 1/32 4-bit / 8-bit - ST7920 ^3
128 x 16 70.00 x 12.00 0.50 x 0.53 106.00 x 34.00 CV12816A COB - / M / - / - 1/16 8-bit - BS1520 -
128 x 32 32.30 x 13.60 0.175 x 0.175 24.384 x 7.584 CG12832B COG L / - / - / - 1/32 I2C FPC ST7539I-G4 -
128 x 32 76.00 x 22.20 0.57 x 0.60 84.30 x 36.30 CG12832A COG L / - / - / - 1/33 I2C PIN ST7029 ^1
128 x 64 30.40 x 20.90 0.22 x 0.30 34.40 x 31.60 CV9020B COG L / - / - / - 1/65 8-bit FPC ST7565P ^1
128 x 64 30.40 x 20.90 0.22 x 0.30 34.40 x 32.60 CG12864C COG L / - / - / - 1/65 Serial FPC ST7565R ^1
128 x 64 37.04 x 20.24 0.27 x 0.27 44.30 x 30.14 CG12864A COG L / - / - / - 1/65 Parallel / Serial FPC UC1701X ^1
128 x 64 52.00 x 26.50 0.38 x 0.38 61.00 x 38.50 CV9007D COG L / - / - / - 1/65 Serial FPC ST7565P ^1
128 x 64 59.00 x 30.35 0.40 x 0.40 64.00 x 47.35 CV9007E COG L / - / - / - 1/65 8-bit PIN/FPC ST7565P -
128 x 64 62.00 x 44.00 0.44 x 0.60 78.00 x 70.00 CV12864B COB L / M / E / - 1/64 8-bit - SBN0064G ^2
128 x 64 62.00 x 44.00 0.44 x 0.60 78.00 x 70.00 CV12864C SMT L / M / - / - 1/64 8-bit - RA6963 ^2
128 x 64 52.00 x 26.50 0.38 x 0.38 61.00 x 38.50 CG12864E COG L / - / - / - 1/65 Serial FPC ST7567 ^1
128 x 64 59.00 x 30.35 0.40 x 0.40 64.00 x 47.35 CG12864F COG L / - / - / - 1/65 8-bit PIN/FPC AIP31565CR -
128 x 64 30.40 x 20.90 0.22 x 0.30 34.40 x 32.60 CG12864G COG L / - / - / - 1/65 Serial FPC ST7567 ^1
128 x 64 70.60 x 38.60 0.52 x 0.52 78.40 x 53.00 CG12864H COG L / - / - / - 1/65 Parallel / Serial FPC ST7567 ^1
128 x 128 69.00 x 69.00 0.47 x 0.47 75.40 x 83.40 CG128128A COG L / - / - / - 1/128 8-bit / Serial / I2C FPC UC1617W ^1
132 x 128 50.00 x 42.00 0.30 x 0.30 55.00 x 56.00 CV9132A COG L / - / - / - 1/129 Serial FPC ST7528 -
144 x 12 92.00 x 11.80 0.63 x 0.82 100.00 x 30.00 CV14412A COB - / - / - / - 1/24 4-bit ^5 ET7010 ^4
160 x 160 49.00 x 46.00 0.27 x 0.27 53.00 x 57.00 CG160160B COG L / - / - / - 1/160 Parallel / Serial FPC ST7529 ^1
160 x 160 62.00 x 62.00 0.38 x 0.38 89.20 x 85.00 CV160160A COB L / - / - / - 1/160 4-bit - - -
160 x 160 69.00 x 69.00 0.37 x 0.37 75.40 x 83.40 CG160160D COG L / - / - / - 1/160 Parallel / Serial / I2C FPC UC1611S ^1
240 x 64 102.40 x 30.22 0.41 x 0.41 108.00 x 43.22 CG24064B COG L / - / - / - 1/64 Parallel / Serial FPC ST75256 ^1
240 x 64 132.00 x 39.00 0.53 x 0.53 180.00 x 65.00 CV24064B COB L / M / - / - 1/64 8-bit - RA6963 -
240 x 128 61.50 x 34.50 0.24 x 0.24 73.00 x 45.80 CG240128A COG L / - / - / - 1/128 Parallel / 3line or 4line SPI FPC UC1608 -
240 x 128 79.00 x 43.50 0.30 x 0.30 100.30 x 57.80 CG240128C COG L / - / - / - 1/128 Parallel / 3line or 4line SPI FPC UC1608 -
240 x 128 114.00 x 64.00 0.45 x 0.45 144.00 x 104.00 CV240128A SMT - / M / - / C 1/128 8-bit - RA6963 ^2
240 x 160 61.60 x 42.50 0.24 x 0.24 77.00 x 54.20 CV240160D TAB L / - / - / - 1/160 8-bit ^5 RA8806A ^3
240 x 160 65.90 x 46.00 0.24 x 0.24 73.00 x 60.30 CG240160D COG L / - / - / - 1/160 Parallel / Serial FPC ST75256 ^1
240 x 160 86.00 x 62.80 0.32 x 0.36 96.40 x 78.20 CG240160C COG L / - / - / - 1/160 Parallel / Serial FPC ST75256 ^1, ^2
320 x 240 81.38 x 62.18 0.24 x 0.24 100.00 x 77.70 CV320240D TAB L / - / - / - 1/240 4-bit FFC - ^2
320 x 240 81.38 x 62.18 0.24 x 0.24 97.70 x 75.00 CV320240G TAB L / - / - / - 1/240 4-bit / 8-bit ^5 RA8806A ^2, ^3
320 x 240 86.00 x 62.80 0.22 x 0.22 96.40 x 78.20 CG320240B COG L / - / - / - 1/240 4 Line Serial FPC IST3088 ^2
320 x 240 122.0 x 92.0 0.36 x 0.36 161.0 x 112.0 CV320240H TAB L / - / - / - 1/240 8-bit ^5 RA8806 ^2
640 x 200 232.16 x 106.17 0.35 x 0.49 256.29 x 128.02 CV640200A SMT L / - / - / - 1/200 4-bit ^5 - -
640 x 480 198.00 x 150.00 0.30 x 0.30 256.30 x 174.00 CV640480A SMT - / - / - / C 1/240 4-bit ^5 - -

Back to Top

Character / Digit Series

Display Format
Character x line		 Viewing area
L x W (mm)		 Character Size
L x W (mm)		 Module Size
L x W (mm)		 Model
No.		 Assembly
Type		 Backlight Type
L / M / E		 Duty Interface Connector Controller Remark
8 x 2 35.50 x 14.50 2.94 x 5.54 58.00 x 32.00 CV4082A COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^4
10 x 1 64.50 x 15.40 4.92 x 9.68 80.00 x 36.00 CV4101A COB - / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 1 64.00 x 13.80 3.20 x 5.95 80.00 x 36.00 CV4161H COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 1 99.00 x 13.00 4.84 x 9.66 122.00 x 33.00 CV4161B COB - / M / - 1/8 4-bit / 8-bit - ST7066U ^4
16 x 1 99.0 x 14.0 4.84 x 8.06 113.0 x 24.4 CG9161B COG L / - / - / - 1/8 3-line SPI / I2C Pin ST7025 -
16 x 2 43.90 x 10.00 2.24 x 3.55 48.20 x 21.00 CG9162E COG L / - / - 1/16 4-bit Pin ST7032 -
16 x 2 61.00 x 15.80 2.95 x 5.15 64.50 x 26.00 CG9162J COG L / M / - 1/16 4-bit Pin ST7032 -
16 x 2 61.00 x 15.80 2.95 x 5.55 80.00 x 36.00 CV4162D COB L / M / - 1/16 4-bit / 8-bit - ST7066U -
16 x 2 61.00 x 15.80 2.95 x 5.55 80.00 x 36.00 CV4162F COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 2 61.00 x 15.80 2.95 x 5.55 84.00 x 44.00 CV4162H COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 2 62.00 x 16.00 2.80 x 4.91 85.00 x 30.00 CV4162C COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 2 64.00 x 13.80 2.95 x 4.35 80.00 x 36.00 CV4162B COB L / M / E 1/16 4-bit / 8-bit - ST7066U ^1
16 x 2 79.00 x 16.10 4.20 x 6.75 83.00 x 27.40 CG9162D COG L / - / - 1/16 8-bit Pin ST7032 -
16 x 2 99.00 x 24.00 4.84 x 9.66 122.00 x 44.00 CV4162E COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
16 x 4 62.00 x 25.00 2.95 x 4.83 87.00 x 60.00 CV4164B COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
20 x 2 83.00 x 18.60 3.20 x 5.55 116.00 x 37.00 CV4202A COB L / M / - 1/16 4-bit / 8-bit - ST7066U -
20 x 2 83.00 x 18.60 3.20 x 5.55 116.00 x 37.00 CV4202C COB L / - / - 1/16 4-bit / 8-bit - ST7066U ^4
20 x 2 123.00 x 23.00 4.84 x 9.22 146.00 x 43.00 CV4202B COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
20 x 4 76.00 x 25.00 2.95 x 4.75 80.00 x 35.80 CG9204A COG L / - / - 1/33 4-bit / 8-bit / I2C Serial FPC SSD1803A -
20 x 4 76.00 x 25.00 2.95 x 4.75 98.00 x 60.00 CV4204B COB L / M / - 1/16 4-bit / 8-bit - ST7066U -
20 x 4 123.00 x 42.50 4.84 x 9.22 146.00 x 62.50 CV4204C COB L / M / - 1/16 4-bit / 8-bit - ST7066U ^1
24 x 2 93.50 x 15.80 3.20 x 5.15 118.00 x 36.00 CV4242A COB - / - / - 1/16 4-bit / 8-bit - ST7066U ^1
40 x 2 154.00 x 15.80 3.10 x 5.79 182.00 x 33.50 CV4402B SMT - / M / - 1/16 4-bit / 8-bit - ST7066U -
40 x 2 154.00 x 16.50 3.10 x 5.79 182.00 x 34.50 CV4402C COB - / M / - 1/16 4-bit / 8-bit - ST7066U -
40 x 4 154.40 x 27.50 3.30 x 5.66 196.00 x 56.00 CV4404A SMT - / M / - 1/16 4-bit / 8-bit - ST7066U -
40 x 4 244.00 x 68.00 5.20 x 14.51 280.00 x 88.00 CV4404D SMT L / - / - 1/16 4-bit / 8-bit - ST7066U ^2
10 Digits + Icons 39.00 x 9.20 - 42.00 x 19.50 CV9003A COG - / - / - 1/4 I2C Pin PCF8576 -
10 Alphanumerics + Icons 39.00 x 9.20 - 42.00 x 19.50 CV9004A COG - / - / - 1/4 I2C Pin PCF8576 ^3

Back to Top

Remarks

  1. Built in LCD Voltage booster
  2. Touch Panel available
  3. Fonts type built in: Traditional/Simplified Chinese and English
  4. Fonts type built in: Traditional/Simplified Chinese, English, Eastern/Western Europeans and many others fonts
  5. Other types of connector

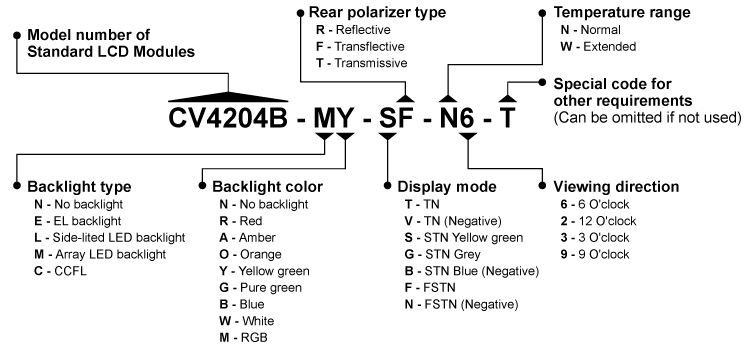

Model Number Notation
